N1 小钢炮固件安装 AdGuardHome
一、安装
SSH 连接 N1，输入命令：
1
2
3
4
| mkdir /opt/adguardhome
mkdir /opt/adguardhome/conf
mkdir /opt/adguardhome/work
docker run --name adguardhome -v /opt/adguardhome/work:/opt/adguardhome/work -v /opt/adguardhome/conf:/opt/adguardhome/conf --restart always --net host -d adguard/adguardhome:arm64-latest
|
二、AdguardHome 配置
1. 浏览器打开 http://N1的IP:3000,输入账密码、端口等，dns 的端口填 80

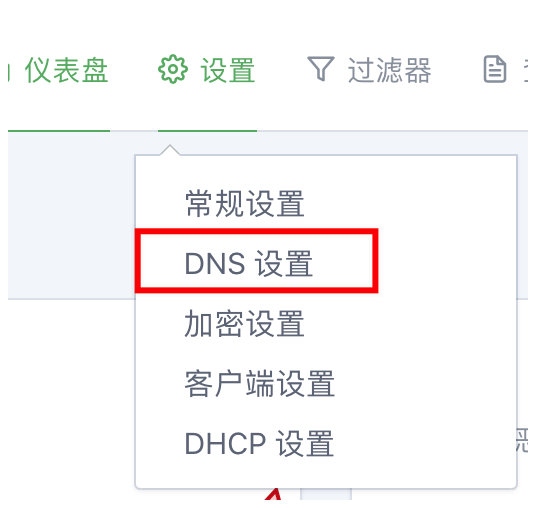

2. 配置 DNS

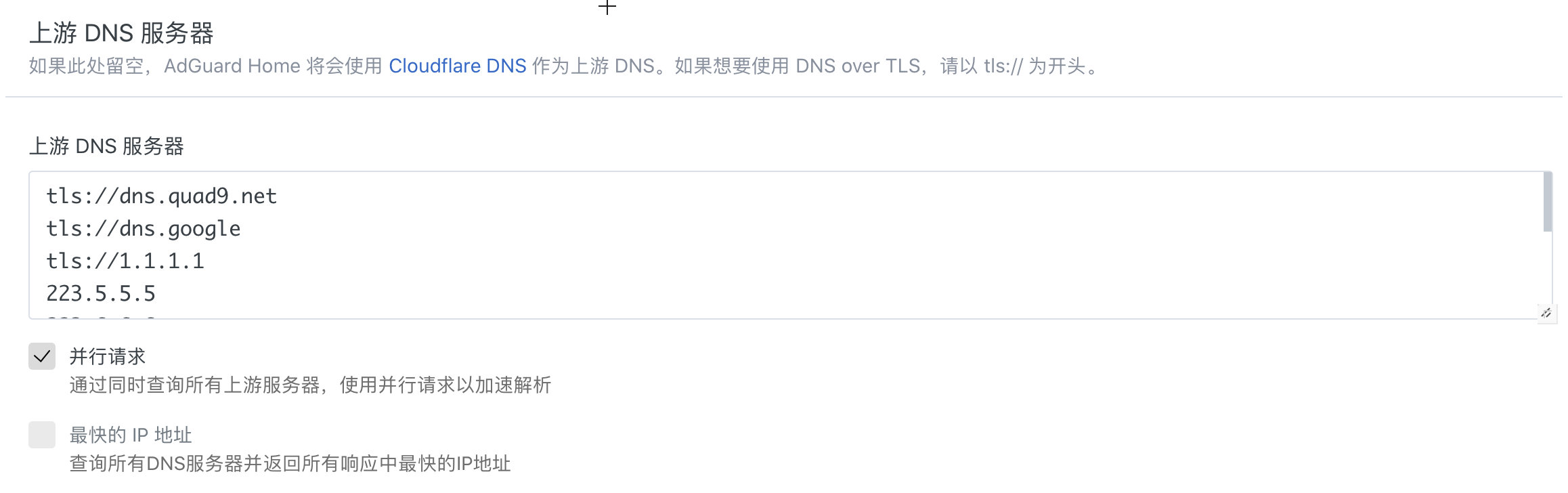

2.1 上游 DNS 填入以下地址，并勾选并行请求：
1
2
3
4
5
6
7
8
9
10
| tls://dns.quad9.net
tls://dns.google
tls://1.1.1.1
223.5.5.5
223.6.6.6
114.114.114.114
114.114.115.115
119.29.29.29
119.28.28.28
tls://1.0.0.1
|
2.2 Bootstrap DNS 服务器填入：
1
2
3
4
5
6
7
| 114.114.114.114:53
8.8.8.8:53
8.8.4.4:53
1.1.1.1:53
208.67.220.220:53
208.67.222.222:53
2400:3200::1
|

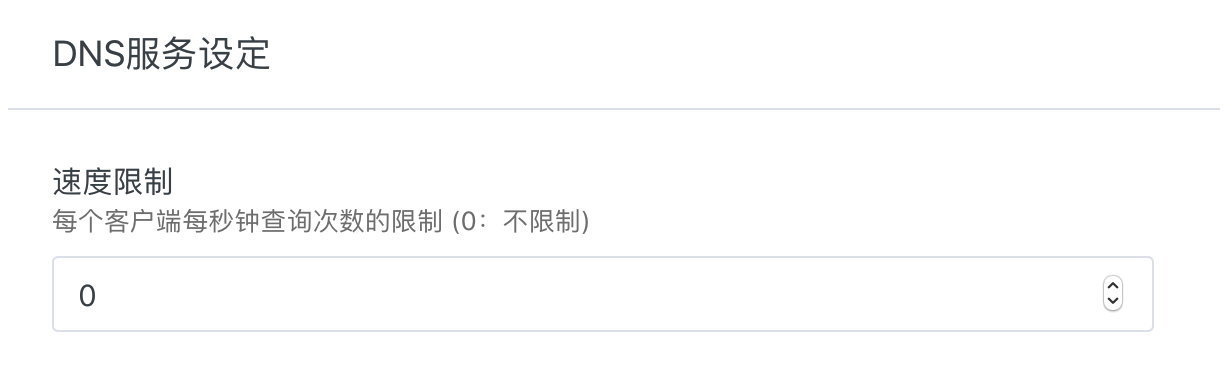

2.3 然后点击应用，并把DNS 服务设定中把速度限制改为 0
3. 配置广告过滤

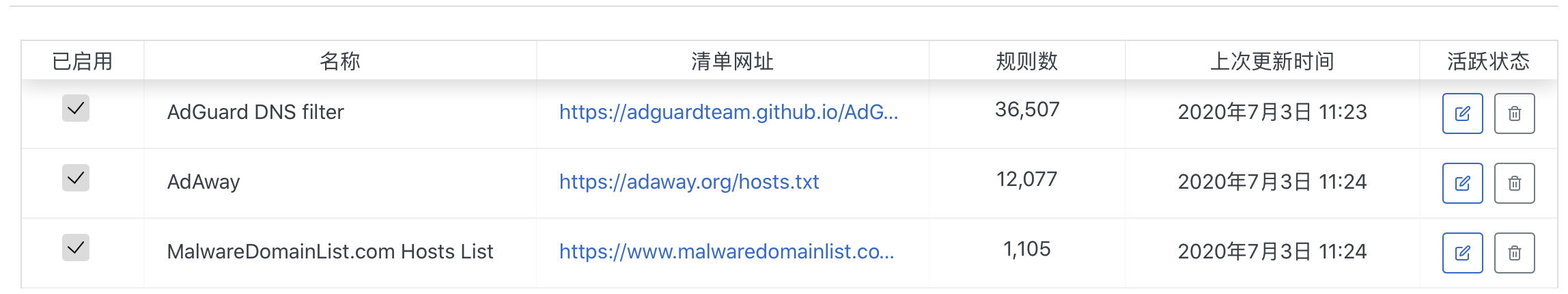

先把自带的 3 个规则勾选上

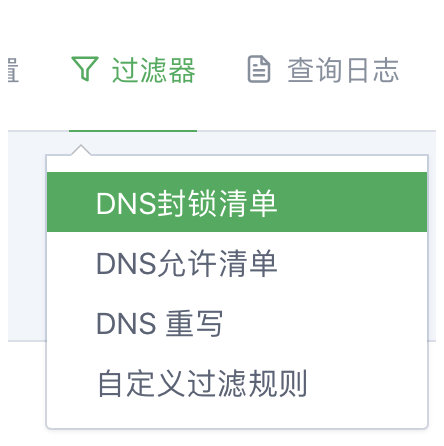

然后通过点击添加阻止列表来添加过滤规则，这里给出我的过滤规则。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
| My AdFilters
https://gitee.com/halflife/list/raw/master/ad.txt
xinggsf
https://gitee.com/xinggsf/Adblock-Rule/raw/master/rule.txt
大圣净化
https://raw.githubusercontent.com/jdlingyu/ad-wars/master/hosts
yhosts
https://raw.githubusercontent.com/VeleSila/yhosts/master/hosts
adgk手机去广告规则
https://gitee.com/banbendalao/adguard/raw/master/ADgk.txt
anti-ad
https://gitee.com/privacy-protection-tools/anti-ad/raw/master/easylist.txt
EasyList China
https://easylist-downloads.adblockplus.org/easylistchina.txt
EasyList
https://easylist-downloads.adblockplus.org/easylist.txt
googlehosts
https://scaffrey.coding.net/p/hosts/d/hosts/git/raw/master/hosts-files/hosts
1024_hosts
https://raw.githubusercontent.com/Goooler/1024_hosts/master/hosts
neoHosts
https://hosts.nfz.moe/full/hosts
|
三、路由器端设置

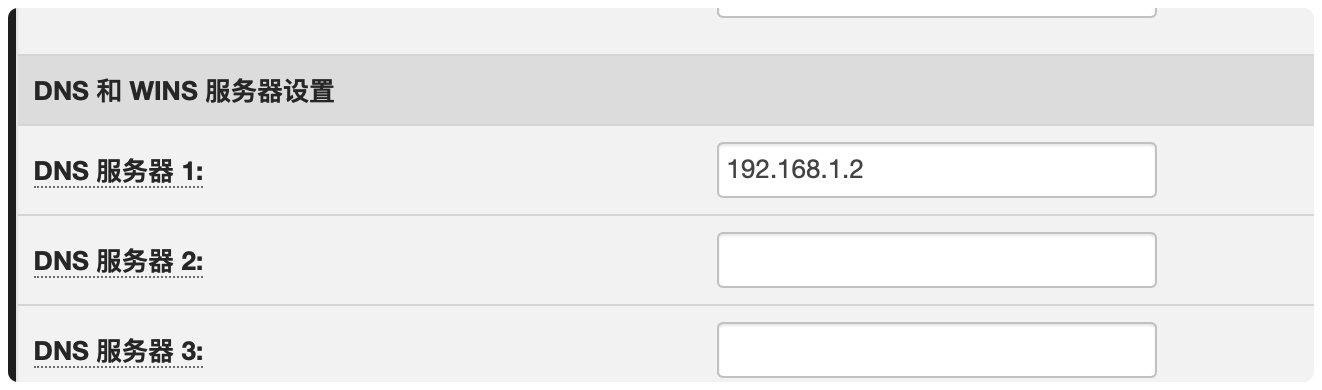

以老毛子系统为例：内部网络(LAN) -> DHCP服务器，在DNS服务器 1中填入 N1 的 IP，其它留空：
然后手机或电脑重新连接 Wi-Fi。
大功告成～

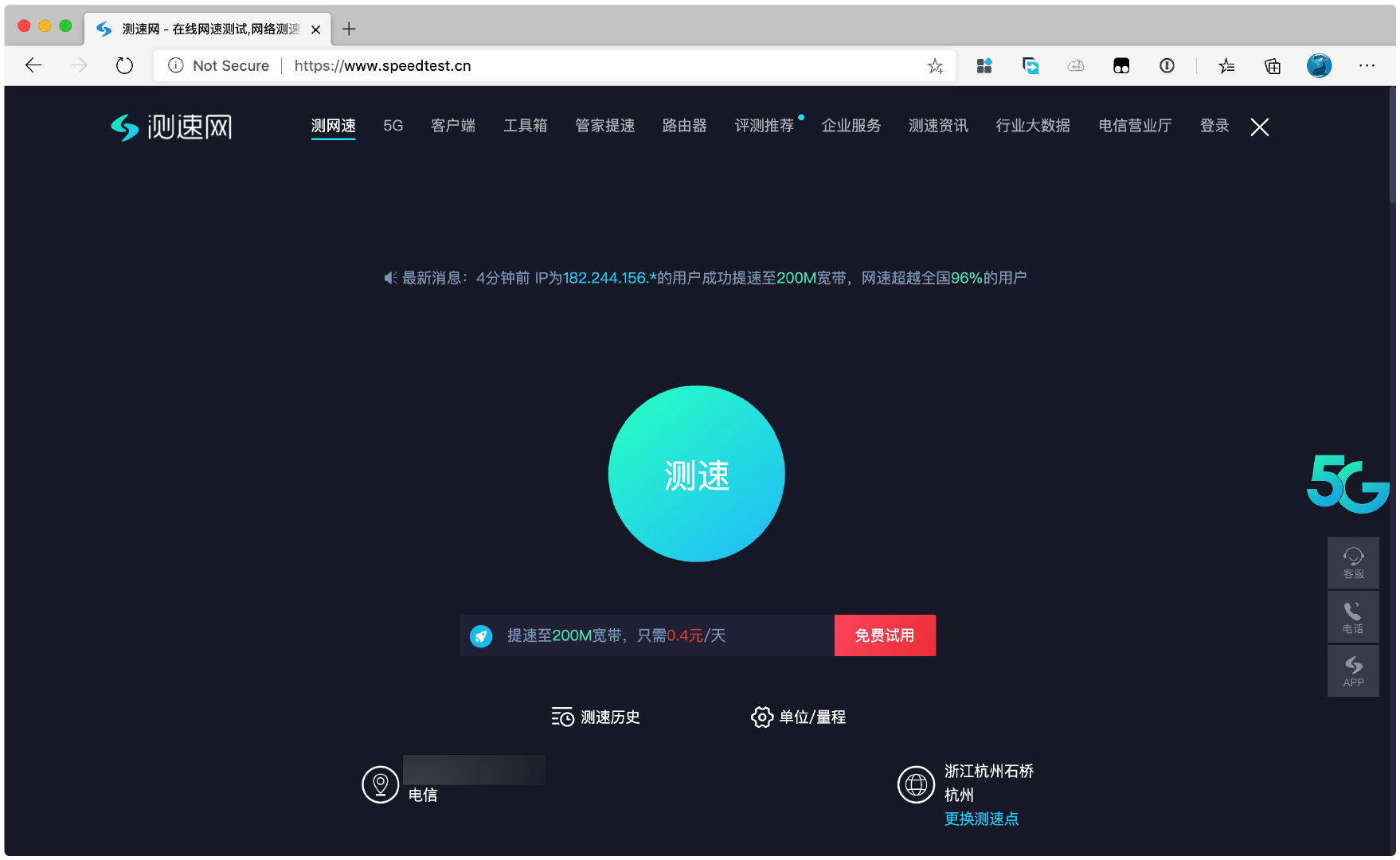

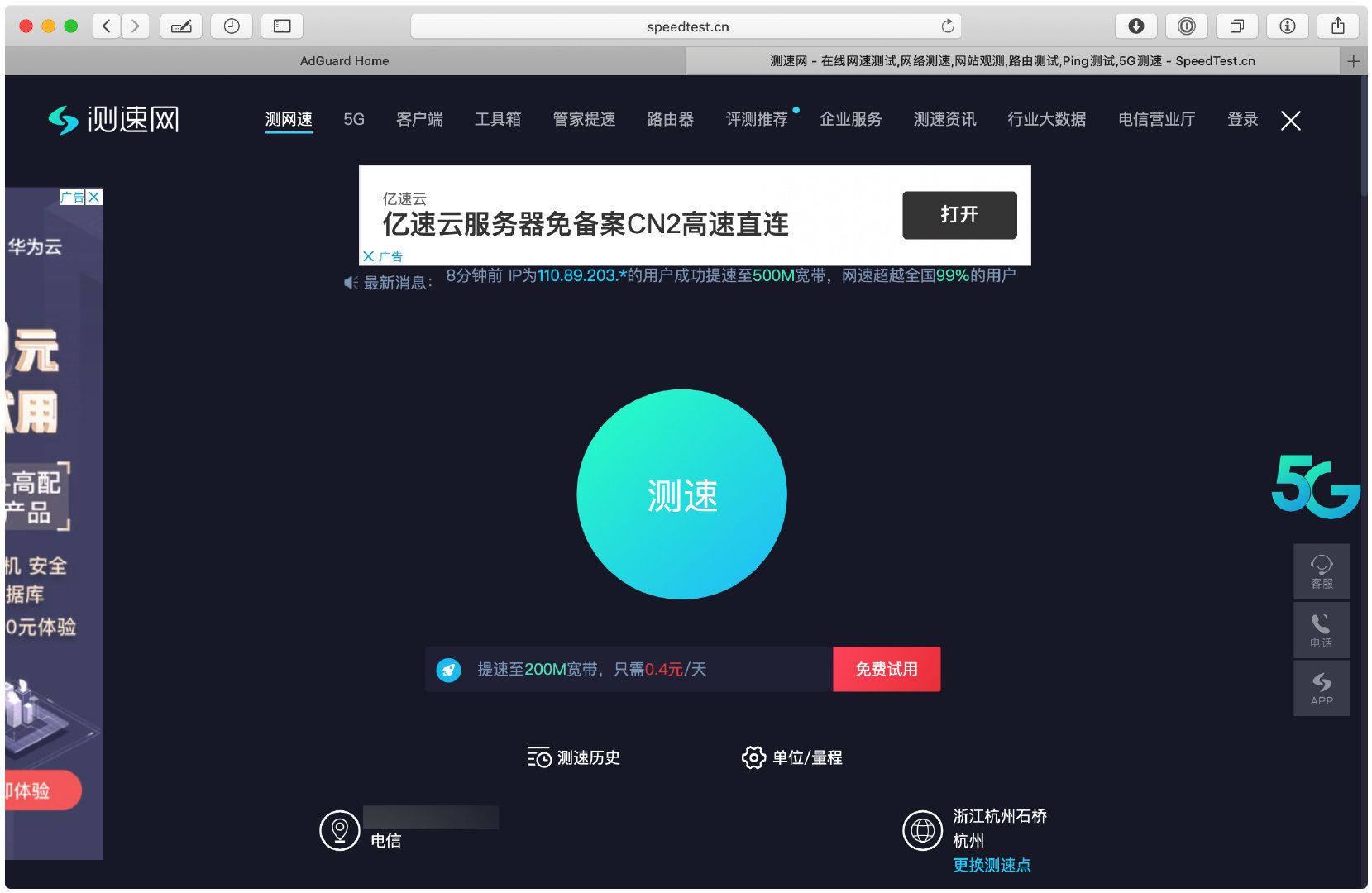

四、效果
